Encrypting backup jobs with Veeam and OKMS

Objective

This guide explains how to configure encrypted backup jobs using the Veeam backup solution and the OVHcloud Key Management Service (OKMS).

Requirements

• Access to the OVHcloud Control Panel.
• A VMware on OVHcloud offer.
• Read the following guides:
  • Integrating a KMS with VMware on OVHcloud.
  • Getting started with OKMS.

Instructions

Step 1: Create a certificate in OKMS

You can create your access certificate in OKMS using either the OVHcloud API or the OVHcloud Control Panel.

Option 1: Using the API

1. Generate the private key using the API (no CSR):

   POST / /okms/resource/{okmsId}/credential

2. Retrieve the certificate using a GET request:

   GET /okms/resource/{okmsId}/credential

   This method is equivalent to selecting I don't have a private key in the OVHcloud Control Panel interface. You may also submit a CSR if you already have your own private key.

3. Download the private key.

4. Download the certificate.

   The downloaded private key is used to generate the .pfx file in the next step. You don't need to import it manually into Veeam, but it is required to convert the certificate into a compatible format. Make sure to store it securely.

Option 2: Using the OVHcloud Control Panel

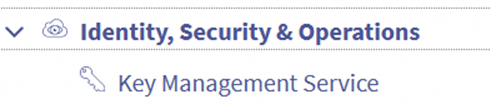

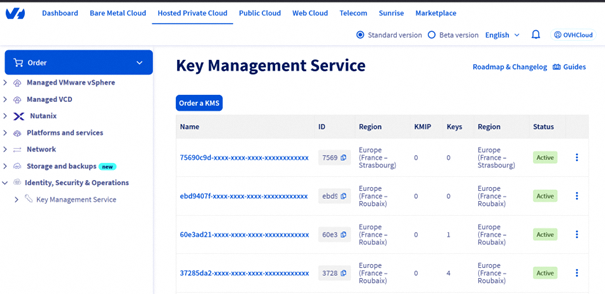

1. In the OVHcloud Control Panel, click Hosted Private Cloud then Identity, Security & Operations and finally Key Management Service. Select your KMS.



2. Select your KMS.

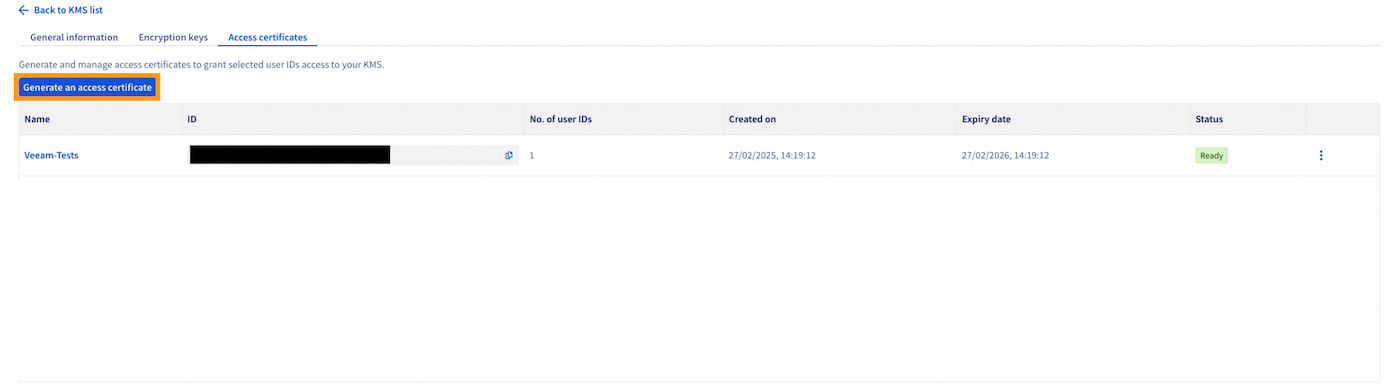

3. Open the Access certificates tab.



4. Click Generate an access certificate.

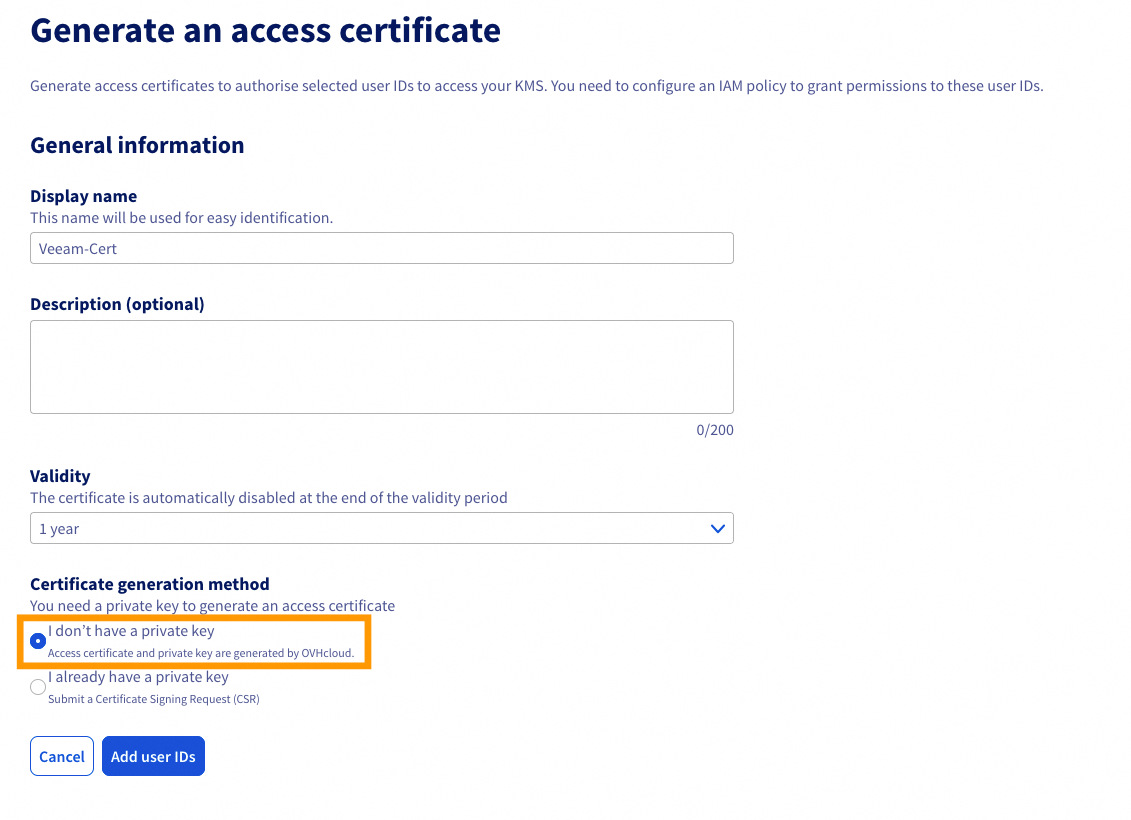

5. Fill in the required fields, then select I don’t have a private key.



   This is the same as generating a certificate without a CSR, like with the API. You can also choose I already have a private key to generate a certificate using your own CSR.

6. Add user IDs to the certificate:

   • Click Add user IDs
   • Select the authorized users
   • Confirm to associate the certificate

   This step is required for the certificate to work with Veeam.

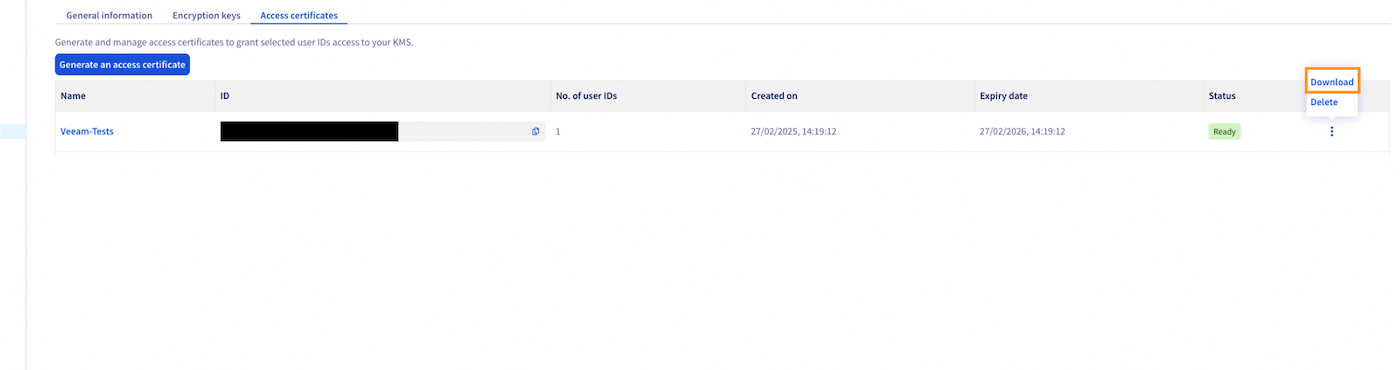

7. Download the private key and the certificate.



Step 2: Convert the PEM certificate to PFX format

To import the certificate into Veeam, convert it to .pfx format using the command below:

openssl pkcs12 -export -out cert.pfx -inkey privatekey.pem -in certificate.pem

Step 3: Import the certificate into the Veeam Windows Certificate Store

• Open the Windows Certificate Store on your Veeam server.
• Import the .pfx file generated in the previous step.

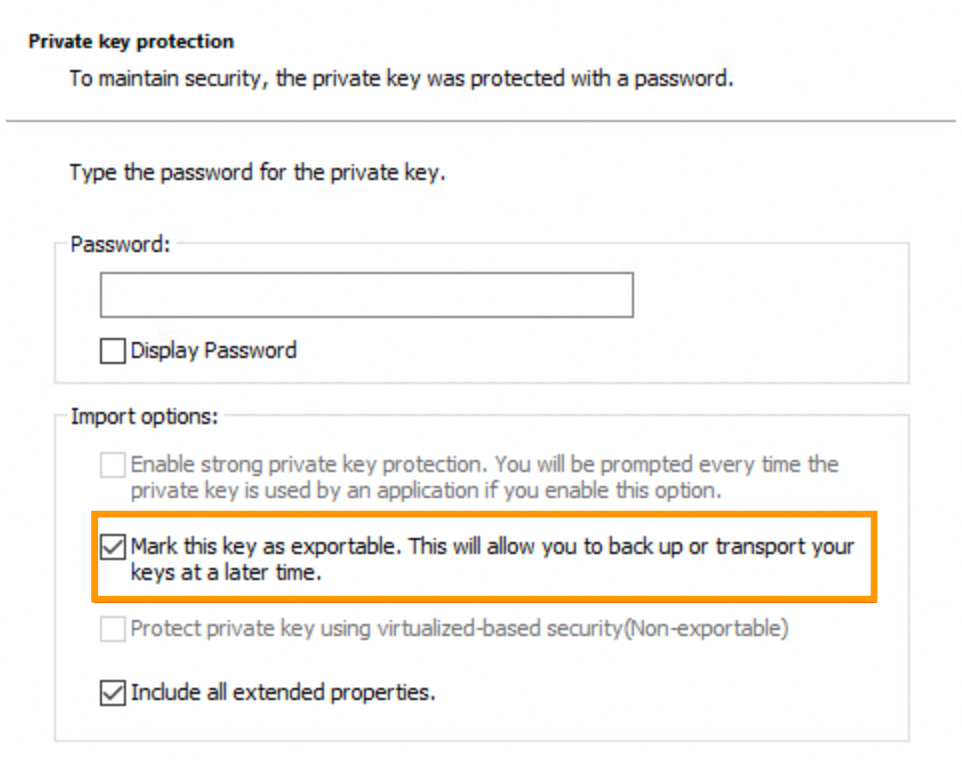

• Check the option to make the certificate exportable.

Step 4: Register the KMS in Veeam

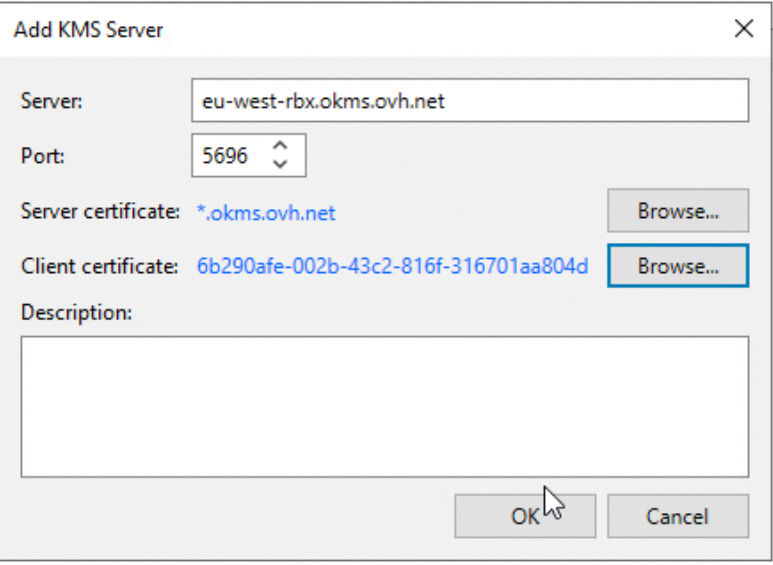

• Open Veeam Backup & Replication and go to Credentials & Passwords, then click Key Management Servers.

• Click Add to add a new KMS server.

• Enter the following details:
  • Server address: eu-west-rbx.okms.ovh.net
  • Port: 5696
  • Server certificate: *.okms.ovh.net
  • Client certificate: the .pfx file you just imported

Step 5: Retrieve the server certificate

To retrieve the server certificate from OKMS, run the following command:

openssl s_client -connect eu-west-rbx.okms.ovh.net:443 2>/dev/null </dev/null | sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p'

Step 6: Configure backup job encryption

• Register the KMS server in your Veeam Backup & Replication console.

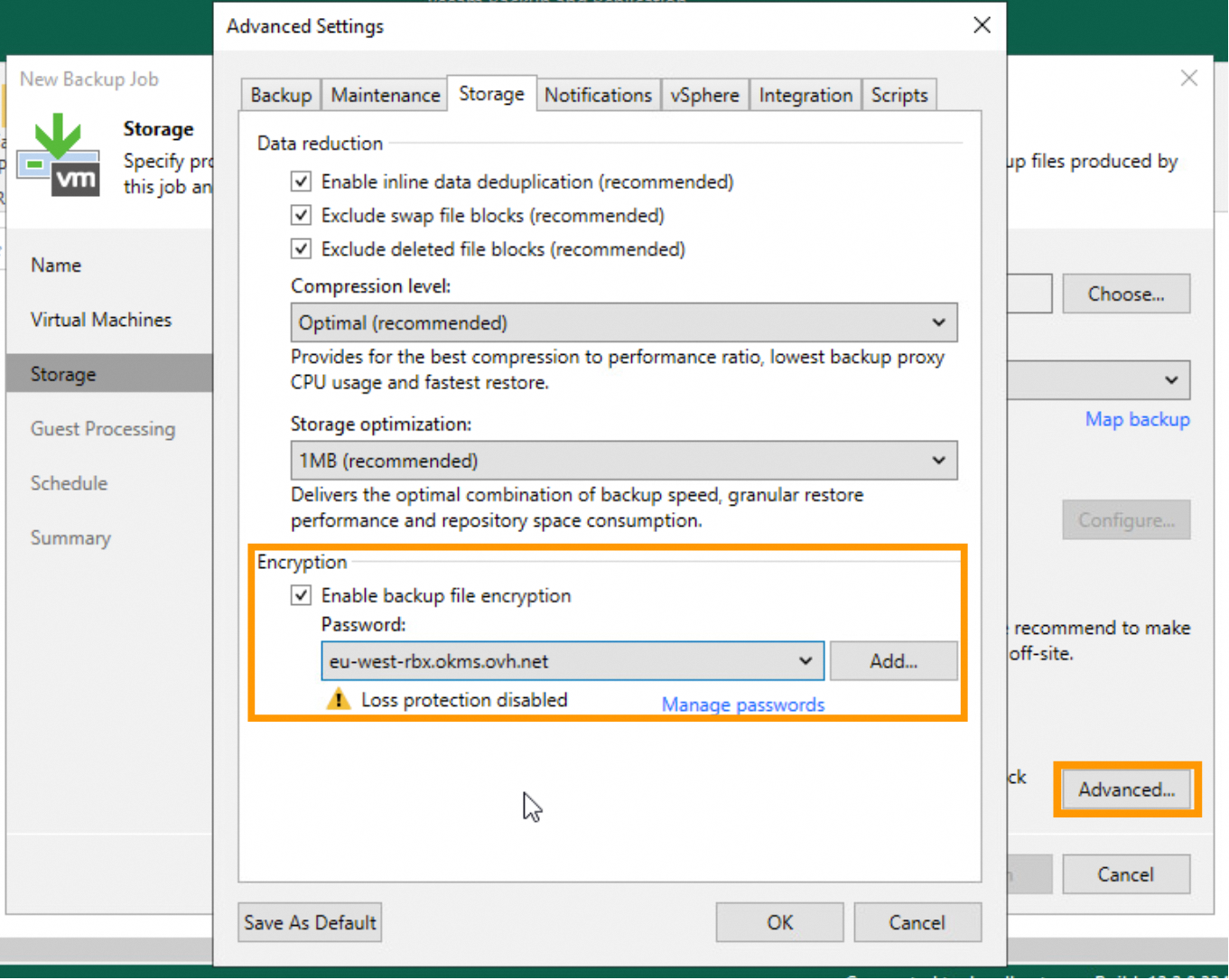

• Select the desired backup job and enable encryption using the registered KMS.

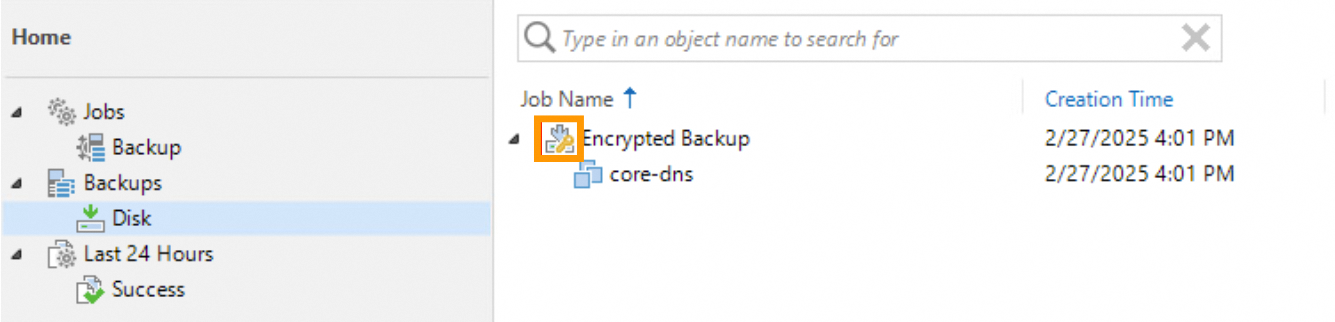

• Once the backup has run, a padlock icon appears next to its name.

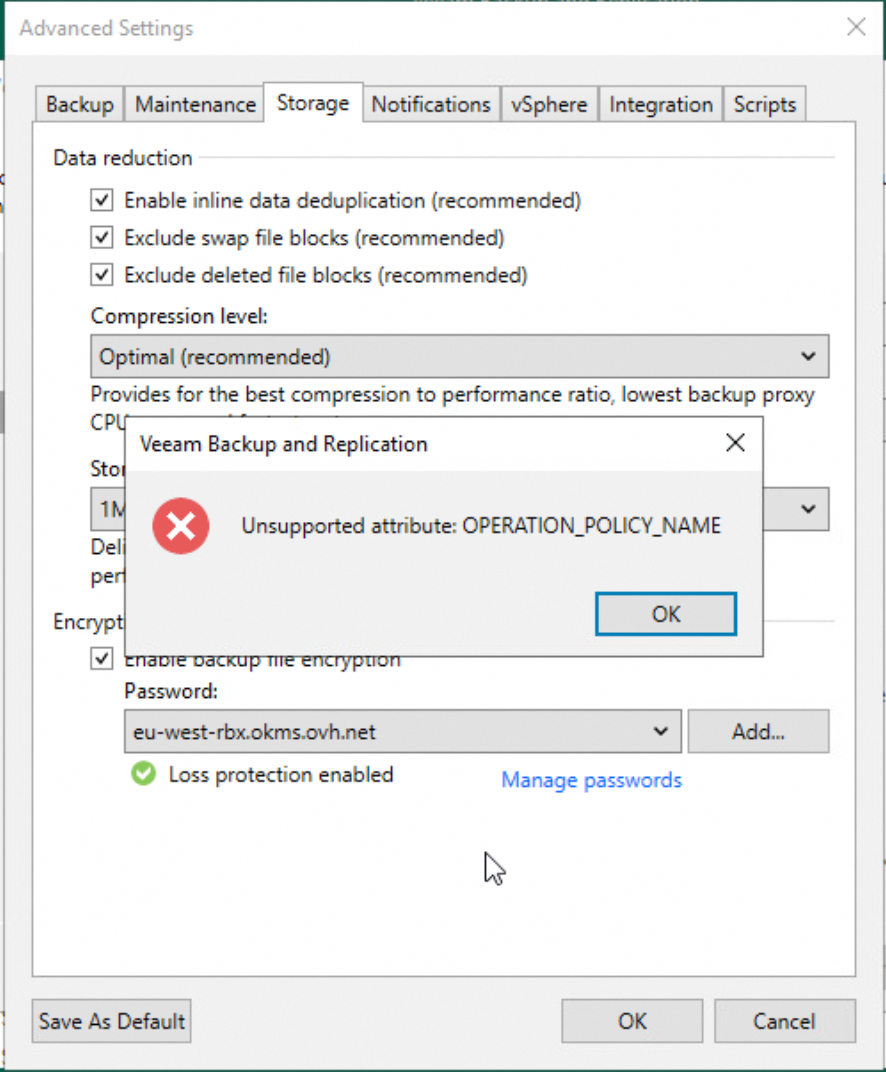

• If you encounter the error Unsupported attribute: OPERATION_POLICY_NAME, check the documentation or contact support.
