Configuration of probes on an OVHcloud Load Balancer service

Objective

The OVHcloud Load Balancer allows you to distribute incoming traffic on a frontend to a set of servers in a destination farm.

It may happen that one of the servers in your farm is no longer available for various reasons, such as overload, an incident, or scheduled maintenance. When it encounters a connection error, your OVHcloud Load Balancer attempts to switch traffic to another server. The connection will be slowed down, but it will continue to function.

However, the causes of some unavailability are more subtle. For example, if a new version of the code is being deployed, the application may temporarily be in a transitional state and return 500 errors. In this specific case, one solution would be to mark the affected servers as unavailable in the API before the start of the maintenance, apply the configuration and update, and then mark the server as available again. This method is not ideal, but it works.
For more details on deploying a Blue-Green architecture with your OVHcloud Load Balancer, refer to this guide.

Probes are health checks. They periodically query each of your servers to ensure they are operational. If an error is detected, the server is automatically disabled until the situation is resolved.

This guide will present the general principles, as well as usage scenarios for probes, drawn from real-world use cases.

Requirements

• Have an OVHcloud Load Balancer offer in your OVHcloud account. The service must be properly configured, with farms and servers set up.
• Be logged in to your OVHcloud Control Panel.

Instructions

Table of contents

• Probe API overview
• Examples
• Reference
• From the OVHcloud Control Panel

Probe API overview

The probe API of your OVHcloud Load Balancer has been designed to be flexible and scalable.

Probes are configured directly on the farms. All servers in the same farm thus apply exactly the same probe. However, enabling or disabling a probe is specific to each server. It is therefore possible to "monitor" only certain servers in the same farm.

The list of available probes and their parameters can be consulted with the API call :

For more information on this call, we invite you to consult the Available probes section at the bottom of this guide.

The probes returned by this list can be configured on http and tcp farms via the following calls :

For more information on these calls, you can refer to the Probe handling section of this guide.

Examples

Check if the server accepts TCP connections

This is the simplest probe to set up. It is compatible with tcp and http farms. If no other probe is configured, you can activate this one to start. It works by periodically trying to open a connection on each of your servers. If the connection fails twice in a row, the server is put aside until it responds again.

In practice, this gives a probe :

All other probe fields can remain at their default values. You just need to apply the configuration in the relevant area.

Test a specific HTTP page

By default, the HTTP probe sends an OPTIONS request on / in HTTP/1.0, without a domain name. This is sufficient in many cases, but some servers do not handle this method.
It is possible to perform much more powerful tests with the HTTP probe. For example, a good practice when exposing an HTTP service is to add a dedicated route for probes. It is common to find /status, /health, /check which return a summary of the service's status.

In practice, if you want to configure the probe to send a GET request to http://api.example.com/status, this gives :

All other probe fields can remain at their default values. It is then sufficient to apply the configuration in the relevant area.

Use an external HTTP test

What if your service is, for example, an IMAP server that relies on an LDAP server for authentication ?
It is possible that the server accepts connections, but has a temporary connection issue with the LDAP server. If this happens, clients who are directed to this server could connect but not authenticate. The server should therefore be removed from the farm.

If a tcp type probe is used, it will be able to connect and consider the service available even though it is not the case.

In this scenario, the ideal would be for the health check to confirm that the base service is working. It is possible to indicate a specific port to use in the tests. This allows arbitrary tests to be set up for a service and exposed in HTTP, on a dedicated port.

For example, in this scenario, it would be possible to have an HTTP server on port 8080 that tests the IMAP server via the url /service/imap/status and returns OK when everything is fine. This would give in practice :

It is then sufficient to apply the configuration in the relevant area.

Reference

Probe handling

Configure a probe

Probes can be configured on a new farm (POST) or an existing farm (PUT). The two methods being equivalent, only the second one (PUT) will be presented here.

Other parameters can be edited via this call. As this guide focuses on probes, they are not documented here.

If a port other than the base port of the farm is configured on the probe, the proxyprotocol and ssl parameters are reset. Take the example of a farm configured to use proxyprotocol on port 4242 and a probe associated with port 8080: the latter will not send the proxyprotocol header when connecting to port 8080. The same applies to ssl, which can nevertheless be forced.

Enable probes on a server

For a probe to be active, it must have been configured on the farm and enabled on the relevant servers. This call allows you to enable the probe :

Other parameters can be edited via this call. As this guide focuses on probes, they are not documented here.

Available comparators

Four comparators are available to validate the result of a probe :

The contains and matches comparators look for a match in the first 16 KB of the response. If it is longer, the part beyond will be ignored during the search. Note that for better performance, we recommend returning as little information as possible in your probes.

Available probes

The list of available probes can be obtained with the API call :

TCP

This probe attempts to establish a TCP connection with the server. If the latter sends a "banner", it is possible to check that it matches a pattern. The default test simply ensures that the connection can be established.

HTTP

This probe attempts to establish an HTTP connection with the server. If the latter responds, it is possible to check its HTTP status code or that the response body matches a pattern. The default test sends an OPTIONS request to the '/' page in HTTP/1.0, without the Host field.

If a URL is specified, the domain name and protocol are operational. If a domain name is specified, the "Host" field of the request will be filled in and the request will be sent in HTTP/1.1. If the protocol is specified, it must be consistent with the SSL configuration of the farm.

SMTP

This probe attempts to establish an SMTP connection with the server and sends the "HELLO localhost" command. If the latter responds, the probe checks that the return code starts with a "2" (success). This probe has no specific configuration options.

MySQL

This probe attempts to establish a MySQL connection with the server and analyses the server's response. This probe has no specific configuration options.

PostgreSQL

This probe attempts to establish a PostgreSQL connection with the server and analyses the server's response. This probe has no specific configuration options.

oco

This probe attempts to establish a TCP connection on port 79 of your server and checks that the response starts with a "2" (success). This probe has no specific configuration options.

From the OVHcloud Control Panel

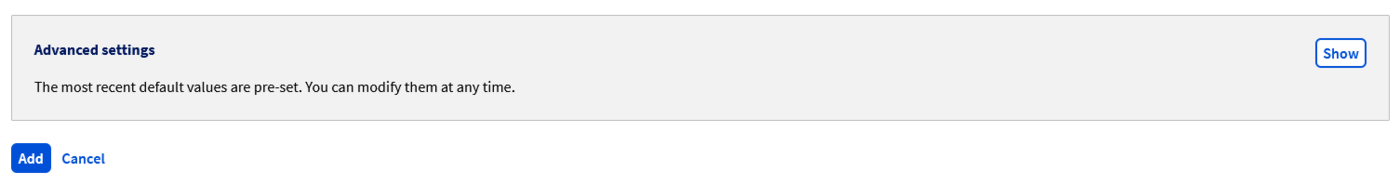

You can configure probes when you add or modify a server farm, in advanced settings.

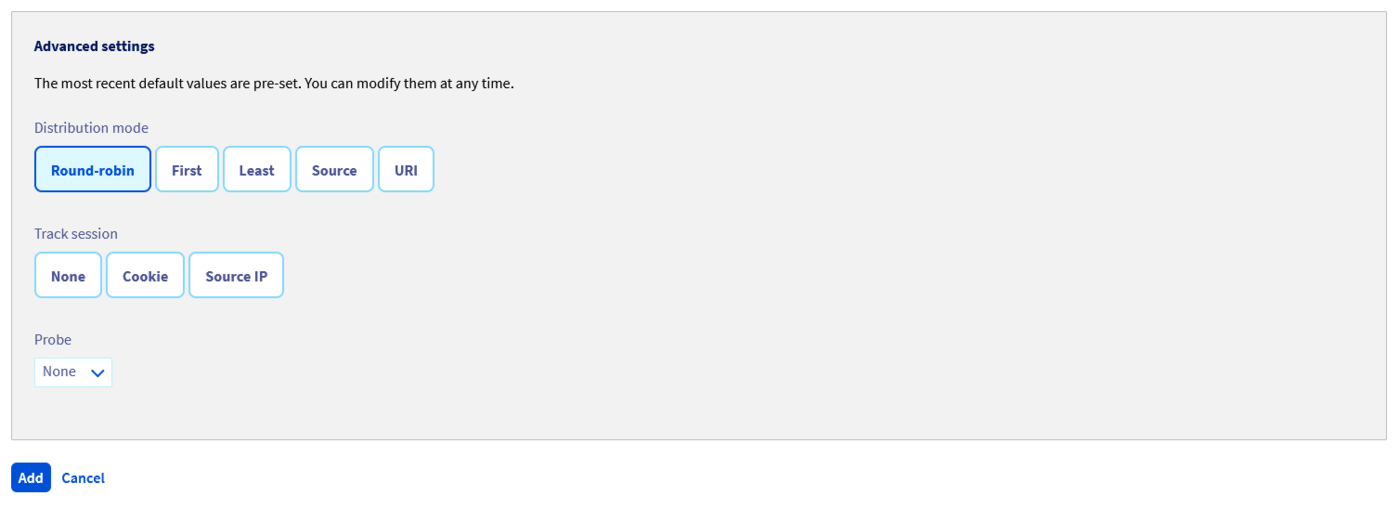

You will then have access to the configuration for the probe type.

If the probe type you have selected allows it, you can configure advanced settings that are specific to that probe.

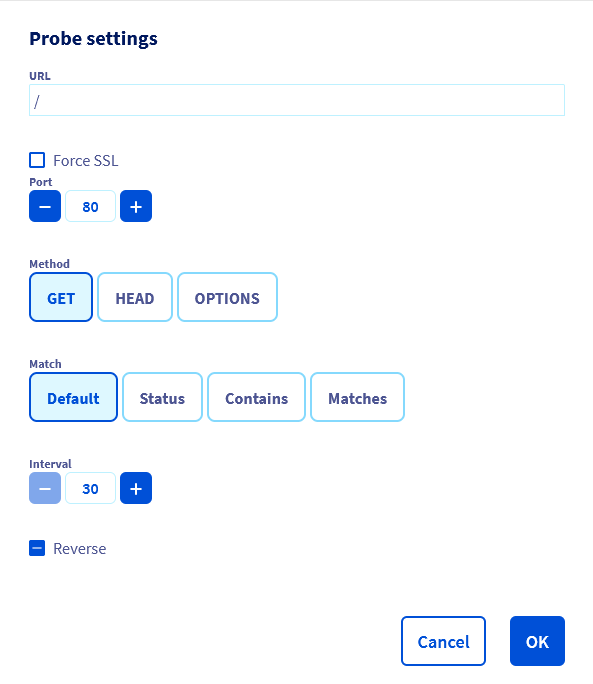

A new configuration window will appear, with the probe’s settings.
